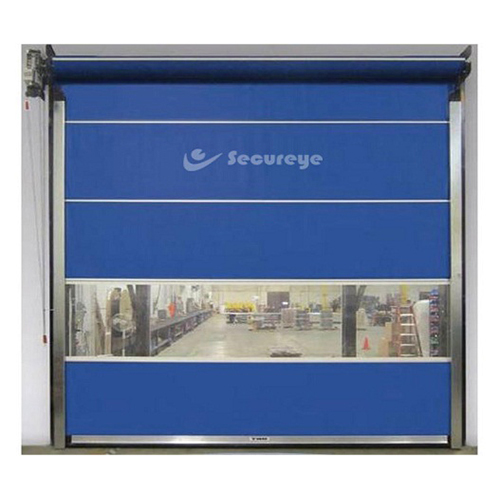

SC-S-HSD High Performance Speed Door
Product Details:
X
Product Description
Technical Specifications
- Opening Speed: Up to 0.8 m/s
- Closing Speed: 0.8 m/s
- Wind Load Class: Class 1 & Class 2
- Water Permeability: Class 3
- Power supply: 230 V,14Amp, 50-60Hz
- Motor: WITH BRAKE POWER 0.75 KW
- Advised operating temperature: -5°C up to +40°C
- Motor IP: RATING IP55
- Control Box: FMPL-400
- Design: Compact
- Drum: GI
- Motor Placed: Outside the drum
- Curtain Thickness: 0.8 – 1.3 mm
- Motor Cover: GI
- Bottom Safety Edge: Aluminium with soft Rubber/EPDM
- Wind Bar: Yes ( Aluminium)
- Side Guide Size: 80 X 90 X 2 mm
- Vision Panel thickness: 2.0 mm
- Top Cover: GI
- Side Cover: GI
- Max. Dimension: (W) 6000X(H) 6000 mm
"We are accepting minimum order quantity of 20."
