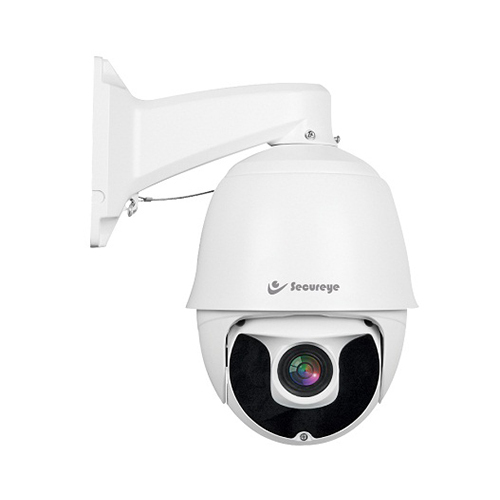

S-PTZ-D5A-20X-24 4 IN 1 IR Medium Speed Dome Camera
Product Details:
X
Product Description
Technical Specifications
- Sensor:1/2.7″ CMOS 5MP NVP2477 + OV05A10
- Output pixel:2688 x 1944 @22fps, 2688 x 1944 @15fps
- Lens :20X, F= 4.7- 96.3mm
- BLC :Support
- AGC :Auto/Manual
- WB : Indoor/Outdoor/Auto/Manual
- S/N Ratio: ≥50dB
- D-WDR : Support
- Auto Control IR LED: PWM
- IR distance: Up to 240 meters
- IR LED: 9PCS IR LED, 4pcs IR Laser LED
- Rotation Range : Pan: 0°~360°, Tilt: 0°~93°
- Rotation Speed(High) : Pan: 0~80°/s, Tilt:0~40°/s
- Auto Flip: Horizontal 180°, Vertical 93°
- Preset Points: 220pcs preset (Dwell time 01-60s interval available)
- A-B Scan : User-programmable (scan speed 1-64 levels setting available)
- Guard Tours: 3 groups (Max.16 points, dwell time user selectable)
- Video interface output : AHD/TVI/CVI/CVBS selectable
- Communication mode : RS485 (+/-) / coaxial cable
- Operating Temperature:-40°C~+60°C
- Power : DC12V 4A
- Power Consumption : ≤25W
- Lightning Protection: Transient voltage 6000V
"We are accepting minimum order quantity of 20."
