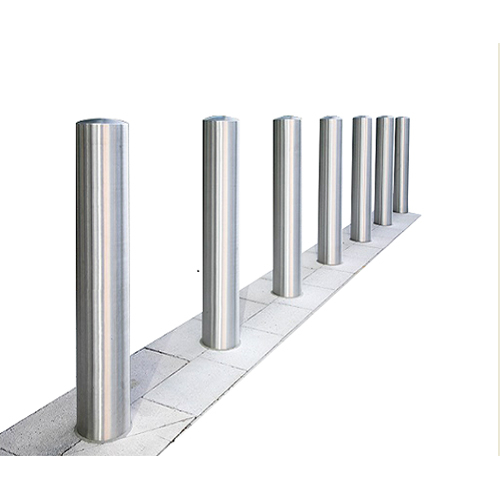

Hydraulic BOLLARD S-HB100

Request to Call Back Send Inquiry

Product Description

Technical Specifications

Unit: Single
Drive Unit: Hydro-Static
Power Supply: Type or use Single Phase/Three Phase 230 VAC / 440 VAC & 50/60 Hz
Electric Motor Capacity: 2.0kw to 4.0kw
Protection Class: IP55
Bollard Height: 600-1200mm
Bollard Diameter: 220-273mm
Wheel Load: 100 KN
Impact Load: Appox. 1000KN
Vertical Load: 100 KN Vertically (20 T / Axle)
cylinder material: st37 or complete ss304 or 316
Surface Protection: Galvanized & Plastic Coated
Operation Time Raising: 4-6 second & Lowering 4-5 second
Operating Panel: 1. From both side of Bollard through Push Button with key switch control 2.From Remote Control up to 10 meter range
Operating Temperature : Range 5º C to +65º C
Power Failure/Emr. Opp. :1. By hand through hand-pump 2. By U.P.S. Power for uninterrupted 2 operations-Up-Down
Electric Controls : Steel or Glass fiber reinforced cabinet, SS BOLLARDS ALSO.
Material of Construction : Carbon steel with powder coated finish or stainless steel in Grade 4 finish.
Integration: Capable of Integration with the overall architecture of Surveillance & Access Control System
RATING :K4 PAS 68,K8,K12

"We are accepting minimum order quantity of 20."
