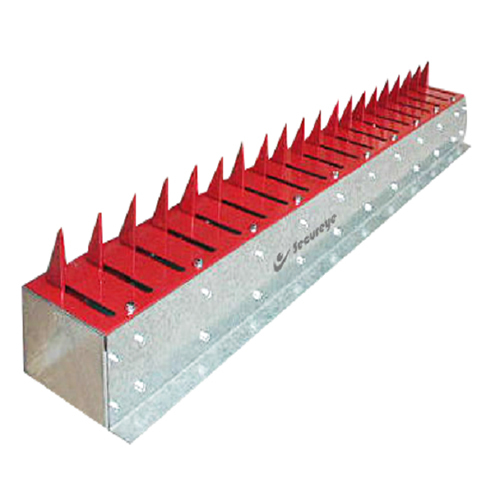

Automatic Spike Barrier S-TB100

Request to Call Back Send Inquiry

Product Description

Technical Specifications

Automatic spike barrier 2-8 mtrs wide make.
Spike made up of tampered steel of height of 150 mm spaced maximum 100 mm center to center capable of taking impact load of 20 , 50, 80, and 100 ton truck, mounted on ms channel (i section) of suitable thickness.
In the lowered position the tyre killer is flush with the road surface thus completely inconspicuous.
The cover plate of the tyre stripper/ spike barrier is constructed in accordance with bridge class 60/30 (din 1072) allowing even the heaviest vehicles (almost 75 tons) to enter the secured area.
Massive steel static and rising impact frames, continuously welded seams for maximum strength.
Separate road-surface trimmer frame for ease of Installation / minimum site disruption.
Primed and spray painted steel frames for maximum protection.
Plc control systems, standard control Systems for all control options and ease of future changes.
Standard raising / lovering times of 1-2 seconds in accordance with site specifications.
ISO 9002 & C.E.Certified, Plus i/d electronic control equipment.
Manual unlocking device with personalized key, can be interfaced with remote control, vehicle loop detector, Push button, sensors etc.

"We are accepting minimum order quantity of 20."
