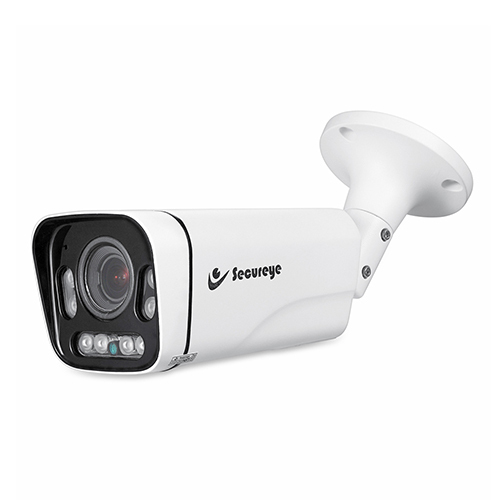

ST-IP-WP-007- 5MP Network Bullet Camera

Smart Function

Human detection

Main Chipset

T31X

Image Sensor

1/2.7″, 4MP progressive scan ultra-low illumination CMOS GC4653 5MP

Effective Pixels

Color: 0.1Lux@F1.2; B&W: 0Lux@F1.2(IR on)

Min. Illumination

2.8-12mm motorized

Lens

20-30M (8pcs IR light)

IR Distance

3D noise reduction

Noise Reduction

DWDR (off/ low / medium / high)

WDR

Off / horizontal mirroring / vertical mirroring / 180° rotation

Mirror Image Setting

Brightness / contrast / sharpness / saturation / chroma

Responding Speed

≤1s

Maximum Detection

5fps/s (color image)

Detection Area

Support specified area, default full screen

Shielded Area

Support 4 areas setting

Upload Method

Private protocol upload

Trigger Method

Video trigger

Encoding Format

H.265/H.264

Coding Characteristics

Main stream: 2592*1904@20fps,2560*1440@25fps,2304*1296@25fps, 1920*1080@25fps, 1280*960, 1280*720 Sub stream D1(720*576), VGA(640*480),Q720P(640*360)

Video Bit Rate

Fixed bit rate, variable bit rate(1280kbps-4Mbps)

Video Type

Composite stream / video stream

Audio Coding Standard

G.711U/64Kbps

Network Interface

1*RJ45 10M/100M self-adaptive LAN port

Network Protocol

TCP/IP, UDP, HTTP, DHCP, RTSP, NTP

Interface Protocol

ONVIF

Network Interface

RJ45 10M/100M network adaptive

PoE

Built-in PoE

TF Card Slot

Up to 512G, Micro SD (EXT3/EXT4) card local storage

Audio

Built-in MIC & Speaker

Alarm

1 in 1 out

Operation T/H

-20°C~55°C / 0%-90%

Weatherproof

IP67

Power Supply

DC12V / PoE

Power Consumption

<10W (MAX)
